Project 240sx Overhaul Journal (Day 18)
Jun 13, 2008 Uncategorized
Related Links
Here we have the mock-up of the new manifold I am making. It basically borrows a few ideas from both the log and equal length manifold designs to make what will be a very responsive manifold that won’t suffer in higher rpm ranges. And don’t worry, the finished product will be much prettier.
-

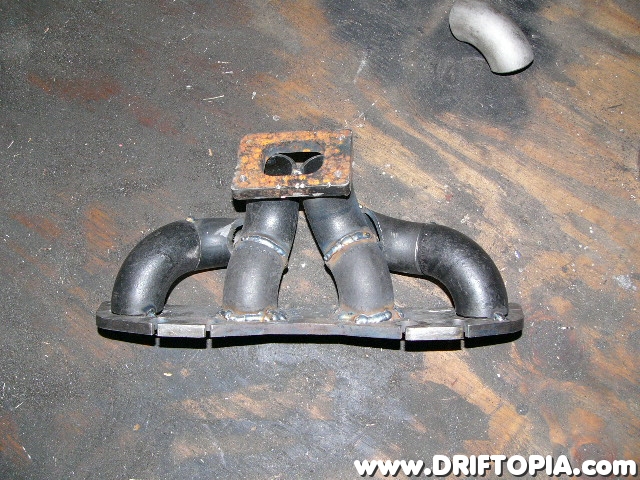

- The general mock-up of the new exhaust manifold. The outside runners will be extended on the final versions so that all runners merge just before the turbo inlet.
-

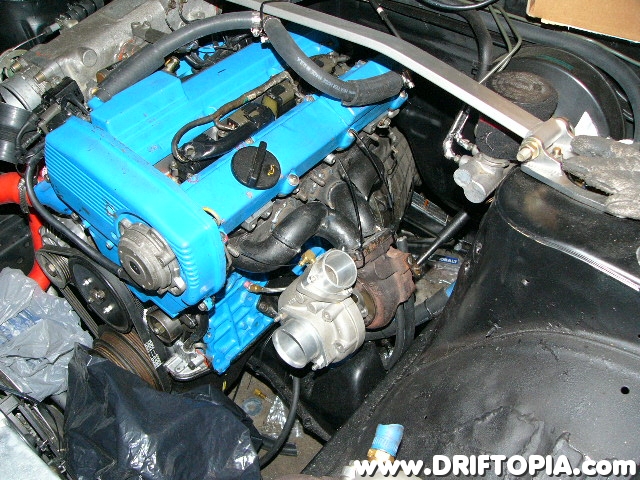

- A T25 temporarily installed. I am going to rotate the flange slightly to angle the exhaust towards the transmission to allow for very secure bracing. This will also enable a very direct cold air intake.
