CA18DET Timing Belt Install (Part 1: The Factory Way)

C

(NOTE: A lot of this information is covered in the FSM. You can download the CA18DET FSM here and check out the engine mechanical section.

Background
Replacing the timing belt on the CA18DET is a simple, though somewhat labor intensive task that can trip up new owners of the CA18DET. This guide will explain the process as well as a couple of shortcuts that will demystify the timing belt for new CA18DET owners. Also, I will follow this install up with a shortcut guide that shows a significantly quicker process for those that are only replacing the timing belt. (For example: No head work such as head gasket.)

Step 1: Access the Belt
To access the timing belt on the ca, you will first need to remove the pulley belts from the front of the motor as well as the water pump pulley. Accessory belts can be removed by loosening the tensioner bolt on the side of the alternator, p/s pump and ac condenser and then sliding each part towards the block. This loosens the belts and they will slide off. Then remove the CAS from the upper timing cover and then unbolt the cover from the engine and set to the side. (NOTE: There should be an alignment marking on the CAS that mates to the cover. If there is not one present, you can add one with a marker. Also, at this point, leave the lower timing cover in place.)

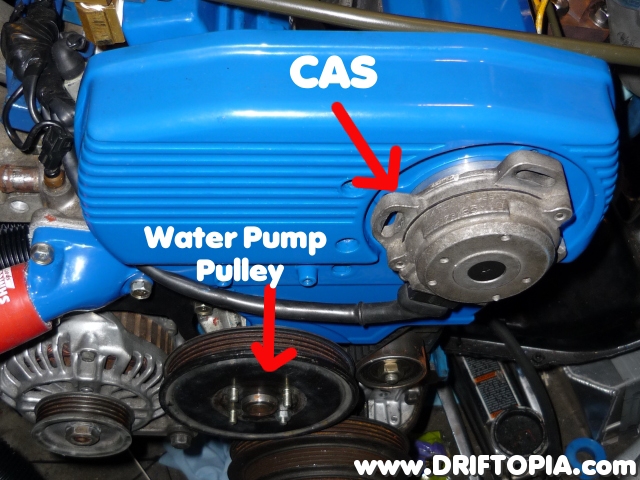

Remove the accesory belts, water pump pulley and the CAS.

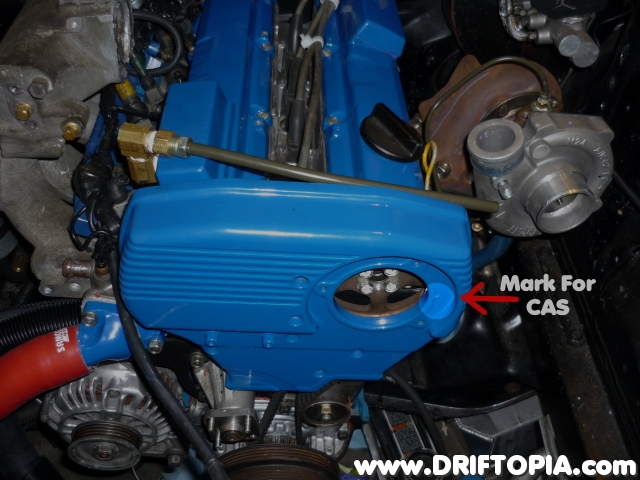

The CAS alignment mark is indicated on the upper front cover.  This corresponds to a mark on the CAS itself.

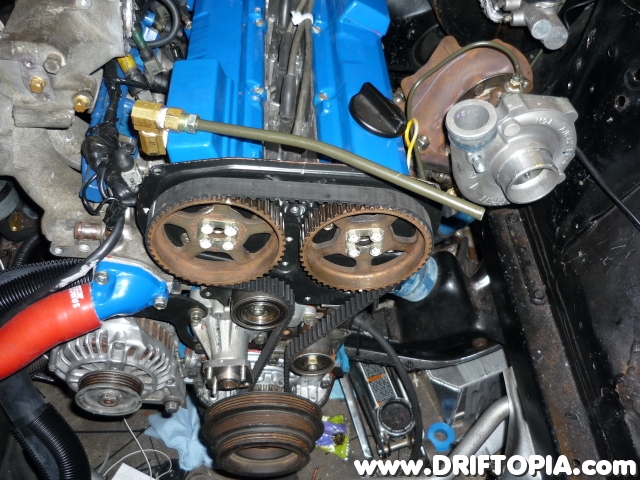

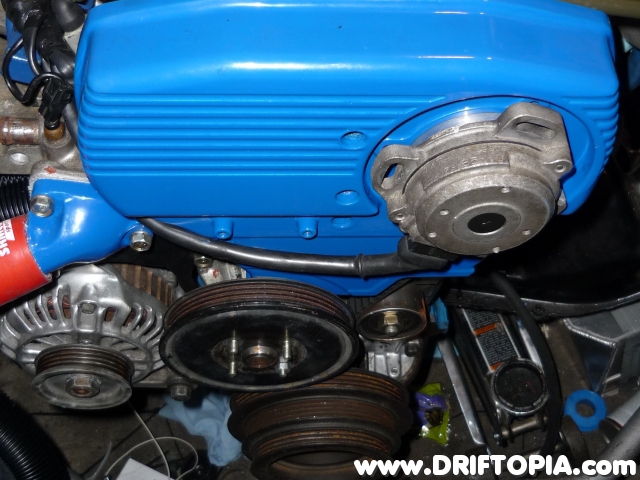

The front cover removed from the CA18DET.

Step 2: Inspect the Belt
Before proceeding, go ahead and inspect the belt thoroughly. Look for cracks in the belt, broken ribs or brittleness. If none of these conditions exist, and you don’t need to remove the cylinder head, then in all honesty you are better off leaving the belt alone as it does not need replacing. Continue on if you are removing the head or need to replace the belt.

Step 3: Set the Motor at TDC
Set the motor at TDC (Top Dead Center) for cylinder # 1 by first ensuring that the transmission is in neutral. Then, remove the ignition pack from the top of the head above cylinder #1 to expose the spark plug. Remove the spark plug and then place a long, 3/8″ extension into the combustion chamber via the spark plug hole. (CAUTION: Make sure the extension is long enough as to not slide all the way into the chamber. Otherwise, you WILL HAVE TO remove the cylinder head to retrieve the extension.) Next, with a 27 mm socket and wrench, slowly turn the crank pulley clockwise and notice how the extension in cylinder #1 will move up and down. Stop turning when the extension extends the highest from the cylinder head. This is the point where cylinder #1 is at TDC.

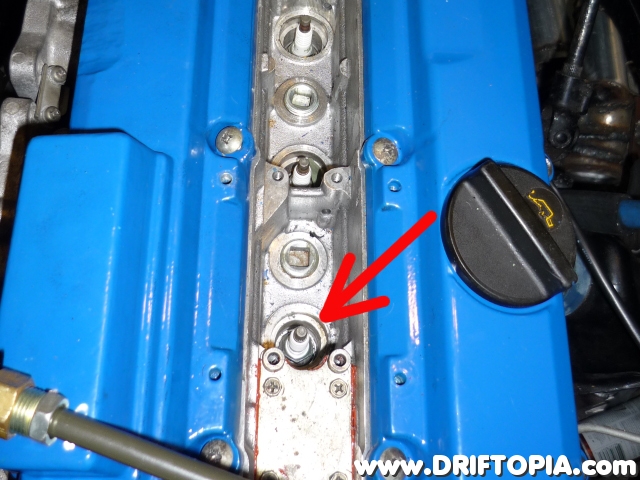

With the coolpack removed, locate and remove the spark plug over cylinder #1. (arrow)

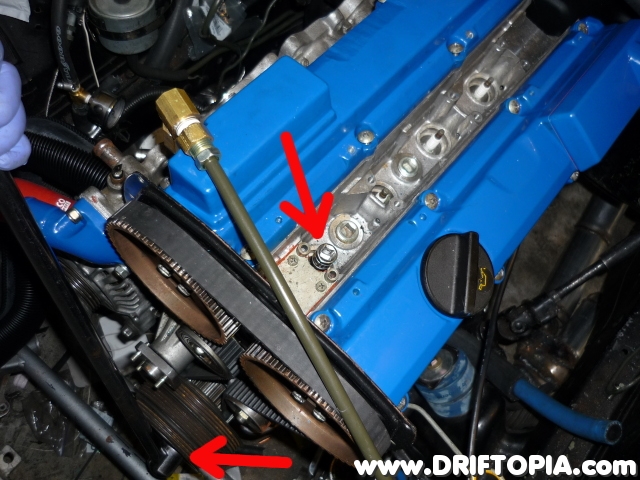

The extension is shown resting in cylinder #1.  Note how the end flares and prevents the extension from sliding all the way in.  The lower portion in the pic shows a braker bar attached to the crank pulley in order to turn the motor by hand.

Step 4: Remove the Crank Pulley
You will first need to remove the crank pulley to access the whole belt. Do this by placing the transmission in first gear and then, with an impact wrench with the 27mm socket. With the bolt removed, you will need a puller to remove the crank pulley from the crank shaft. (These can be rented or purchased at any auto parts store.)

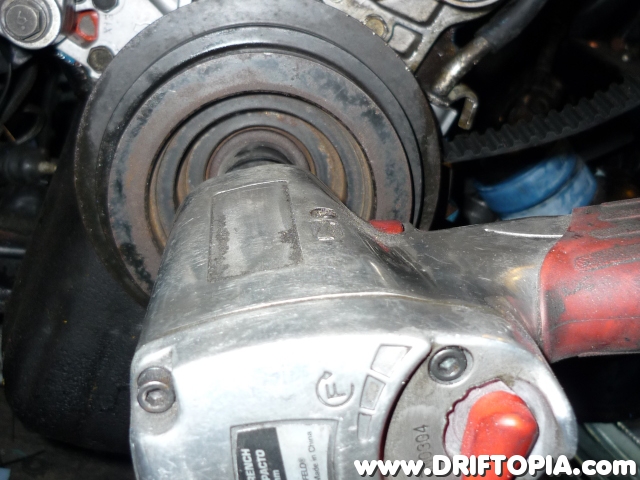

Remove the crank pulley bolt using an impact gun and a 27mm socket.

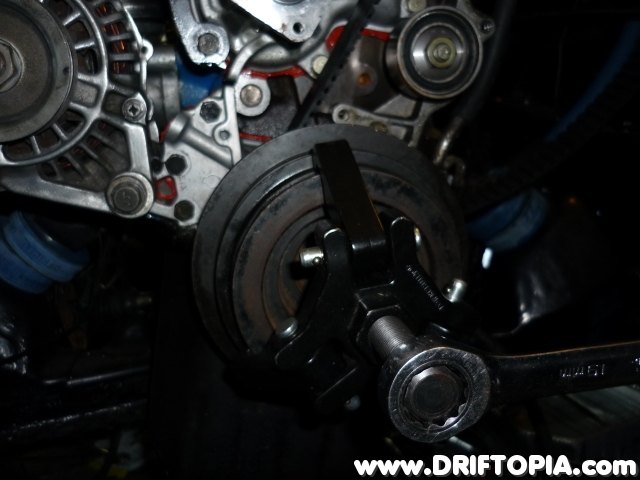

The pulley latches onto the outside of the pulley as you turn the internal bolt.  This lifts the pulley off of the crankshaft.

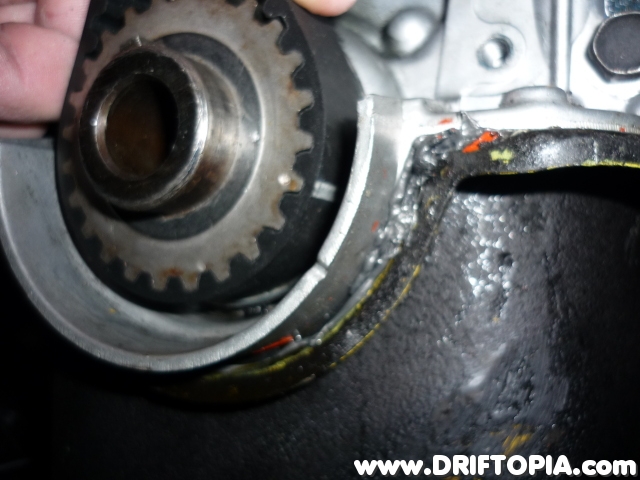

This washer will slide off, revealing the lower sprocket.

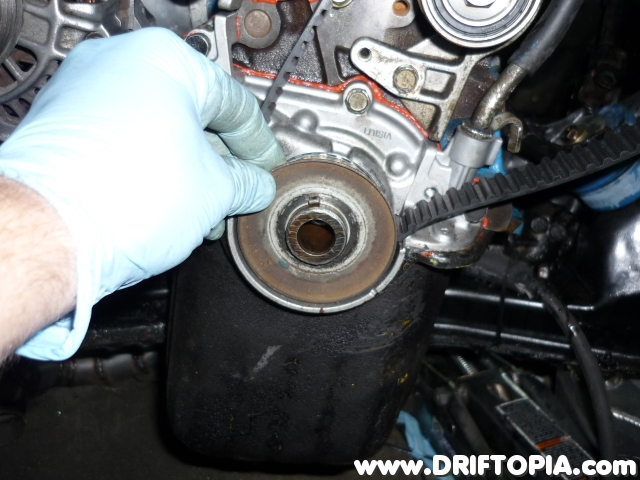

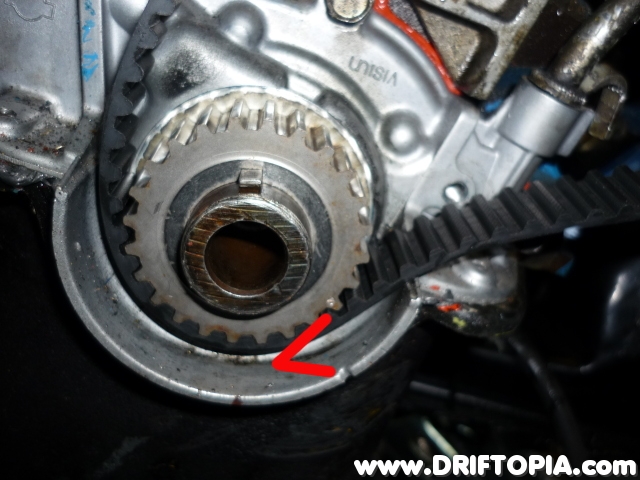

The angle of this image is a little deceptive but if the #1 cylinder is at TDC, the mark on the lower sprocket will line up with the indentation on the lower lip indicated in the picture.

Step 5: Remove the Belt.
Locate the tensioner (the round piece below the intake cam gear) and loosen the 13 mm nut. Then, take an allen wrench and turn the tensioner clockwise. Notice that as the tensioner turns, the timing belt will loosen. After turning the tensioner, tighten the 13 mm nut to lock the tensioner in the loosened position. You will now be able to slide the timing belt off the cam gears and the lower sprocket.

Loosen the tensioner with a 13mm wrench.

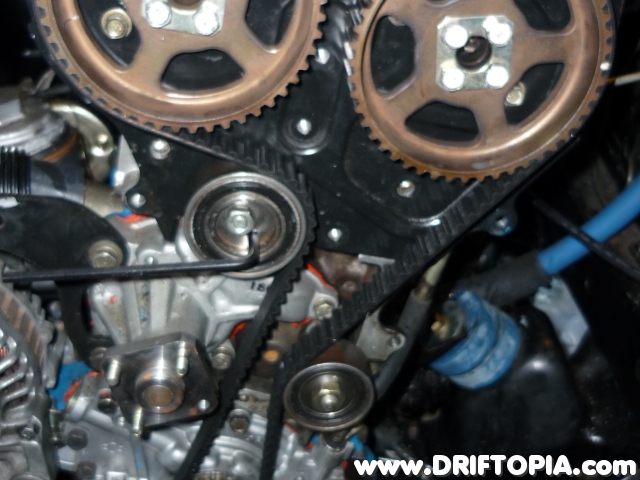

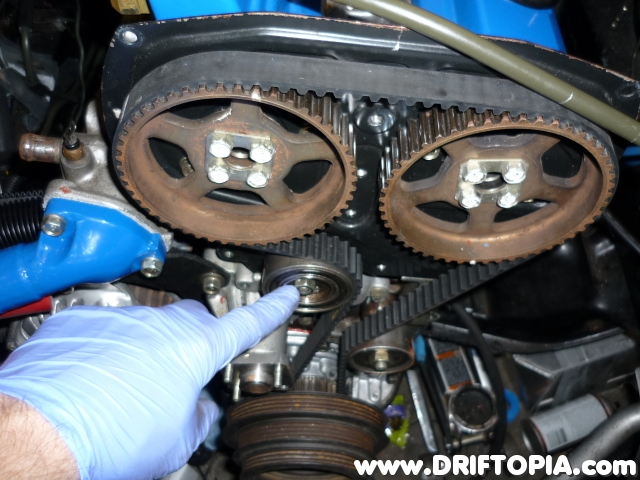

Using an allen wrench, rotate the loosened tensioner clockwise to loosen the timing belt.  The tighten the tensioner in place in the loose position.

Step 6: Lining Up the Timing Marks
As shown earlier, the lower sprocket has a small notch on one of the teeth that lines up with the notch on the lower lip when the motor was set at TDC. If you look at both the intake and exhaust cam gears, you will notice that they each have a single tooth that is marked white. These white marks correspond to marks on the black plate behind the gears. If these marks aren’t lined up, you will need to spin each cam gear until it lines up with its respective mark. This can be done by either spinning the cam gear by hand or if that doesn’t work, removing the valve covers and spinning the camshaft. (NOTE: You could also spin the motor with the belt on when you were setting TDC until all marks line up. However, this could take many revolutions.)

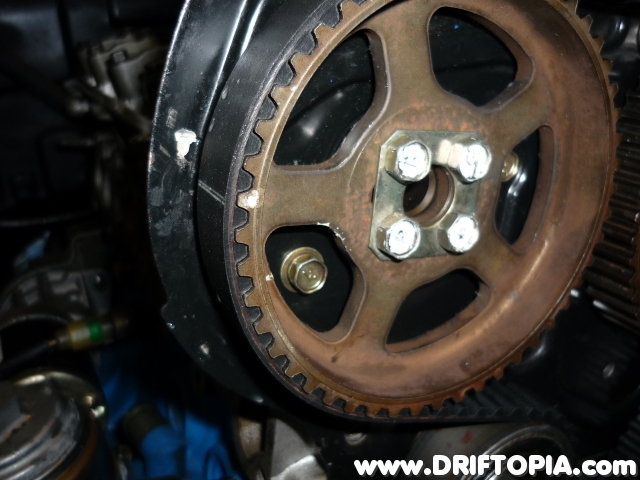

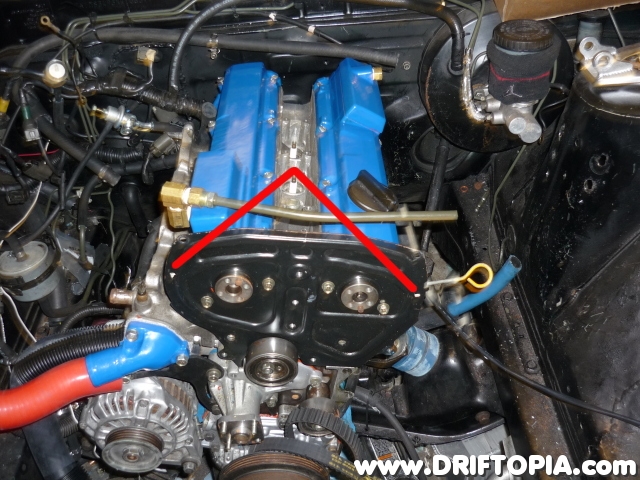

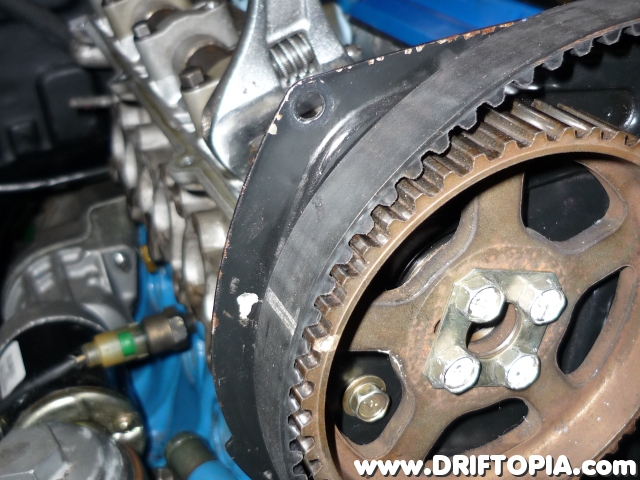

The two indicated marks correspond to the marks on the cam gears.

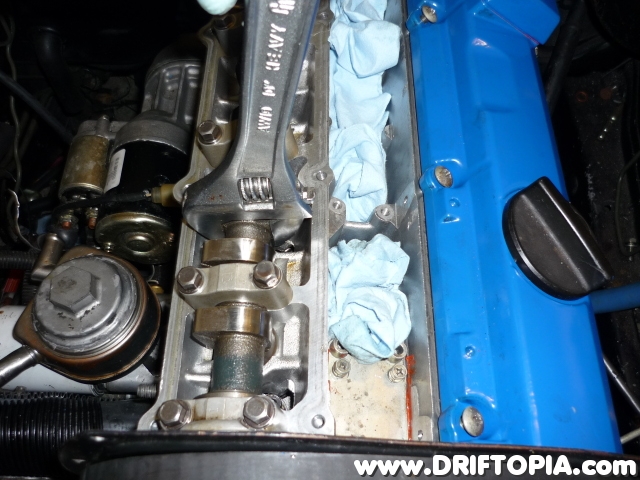

Turning the camshaft in order to align the cam gear on the intake side.

The intake cam gear is now aligned with the marks.

Step 7: Installing the New Timing Belt.

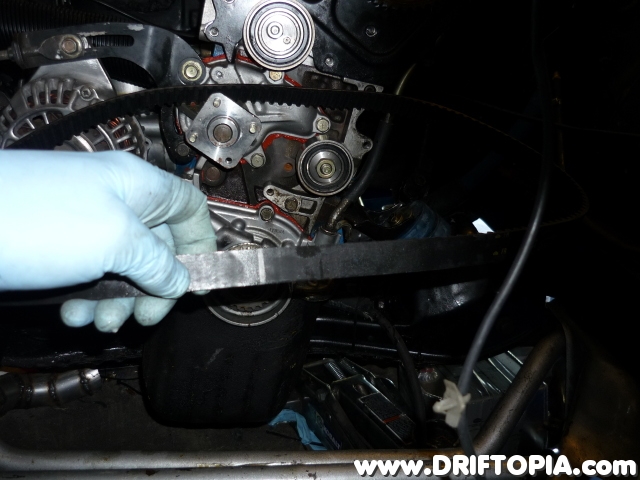

Before installing the new timing belt, note that there are three white lines on the belt. These match up with the markings on the cam gears and sprocket. So take the belt in hand and locate the three marking. Note that two of them are closer together than the third. The two close one go on the cam gears and the third aligns to the sprocket. Also, realize that the belt only goes one way so starting at the bottom, align the lower marking to the sprocket and then snake the belt around the idler pulley (the one you haven’t touched yet) and verify that there is a white marking corresponding to the exhaust cam gear marking. If there isn’t, remove and flip it around. At this point, I recommend that you go ahead and loosen the 13mm nut on the tensioner so that it will move freely. (This will be helpfully in a minute) Now, after aligning the lower marking of the belt to the sprocket, snake the left side of the belt around the tensioner pulley and slide the belt around the intake cam gear verifying that the marks line up. Then continue along this path around the exhaust side, once again verifying all marking line up. During this process, you can use the allen wrench to increase or reduce tension on the timing belt to make it easier to move. Once again, verify all of the marks line up and then count the cogs between the lower sprocket marks and the exhaust cam gear (48) and the between the 2 cam gear marks (39). If anything doesn’t match, pull the belt and realign it.

The timing belt marks will look like this.

The lower timing mark aligned with the lower sprocket.

The intake cam gear with markings aligned.

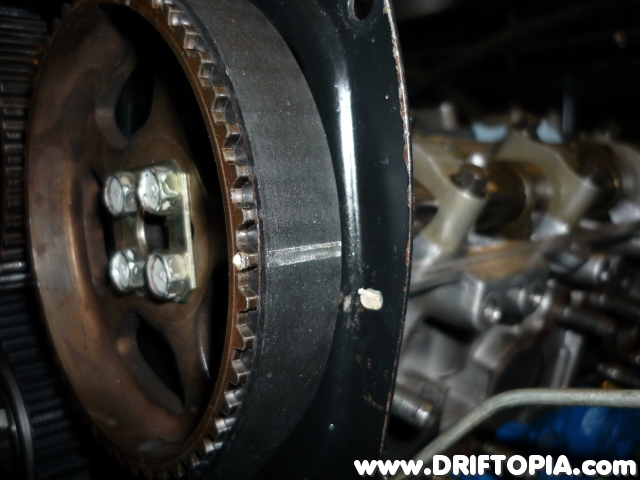

The exhaust side cam gear with the timing marks lined up.

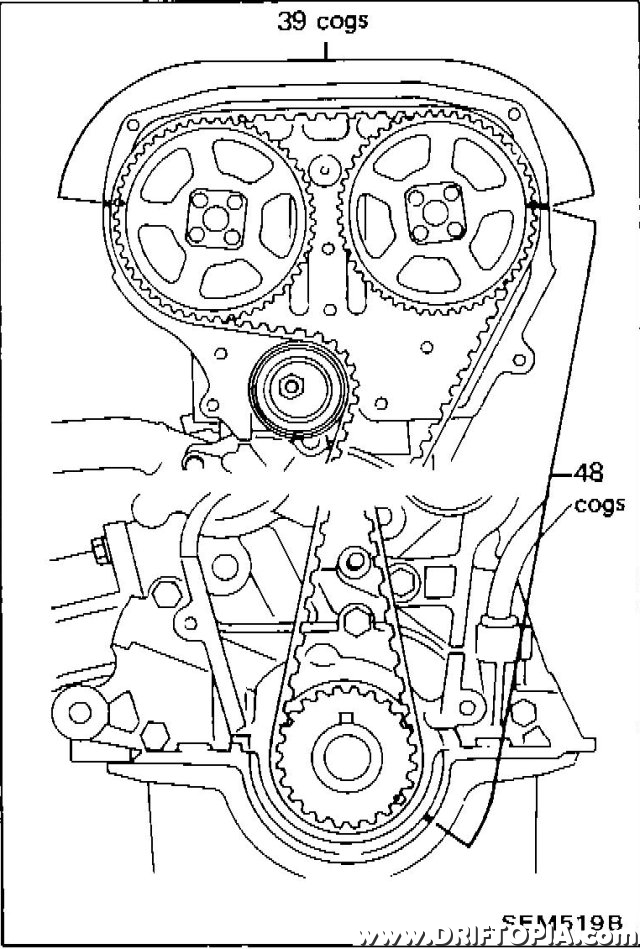

FSM image indicating the appropriate cog spacing.

Step 8: Finishing Up
Making sure that the timing belt doesn’t slip, rotate the tensioner counter clockwise and then clockwise a few times to remove slack from the belt. Then tighten the tensioner and ensure that keeps pressure on the belt. (You will want very little deflection in you timing belt.) Next, reinstall the washer that sat between the belt sprocket and the crank pulley and then reinstall any lower covers you may use. Then, verify that the car is in 1st gear with the emergency brake engaged and reinstall the crank pulley using the impact gun. Once in place, the crank pulley should be tightened to 110 ft-lbs. Before proceeding, place the car back in neutral and with a wrench and the 27mm socket once again spin the crank which will rotate the whole engine. Make two revolution and verify that the timing belt does not slip and that it does not deflect. If everything checks out ok, go ahead and replace the upper timing cover and then the water pump pulley and CAS. Finally, reattach the accessory belts and anything else that you need to remove and enjoy.

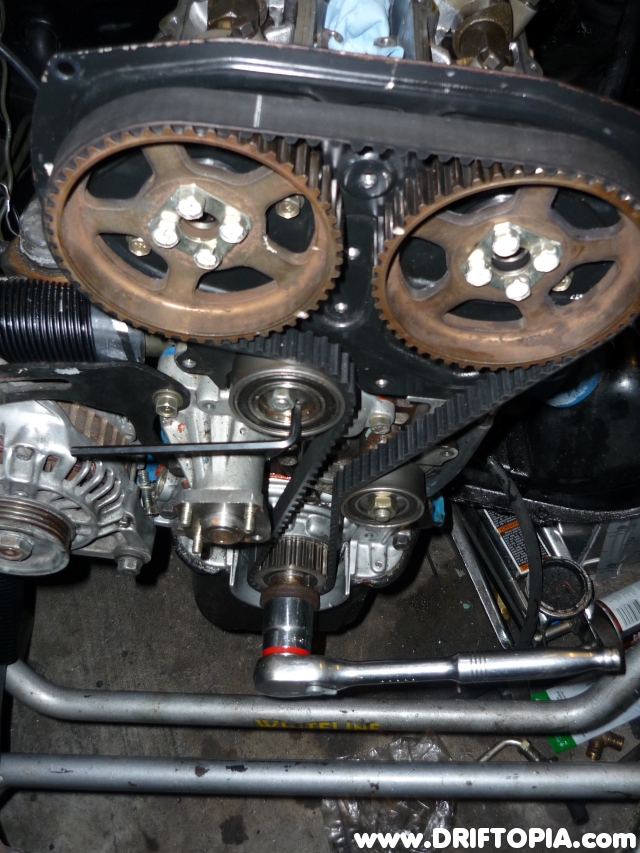

Rotate the engine using the 27 mm socket and wrench.  Check for any belt slippage or deflection.  Note the llen wrench still on the tensioner.  This way you can vary the tension during rotations.

Everything reinstalled minus accessory belts.
